36V250W 26"/28" Rear E-Bike Conversion Kit for Freewheel with 36V13Ah HL1 Battery

Only 3 left
SKU: 2120100194B
Regular price £337.00 inc. VAT
Regular price -13% £389.00 Sale price £337.00 inc. VAT
Size

Use this text to encourage communication or promote sharing on social networks.

You can also add links

1.Technical Data and Packing list

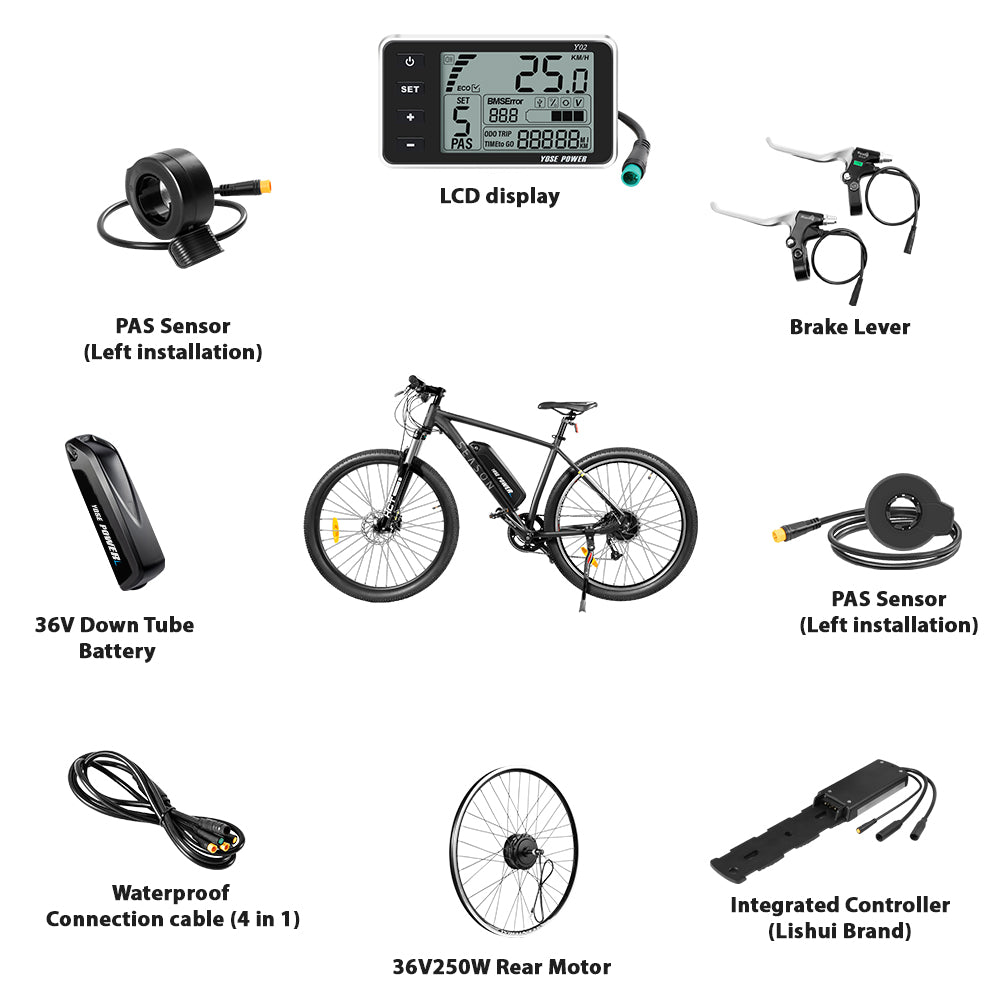

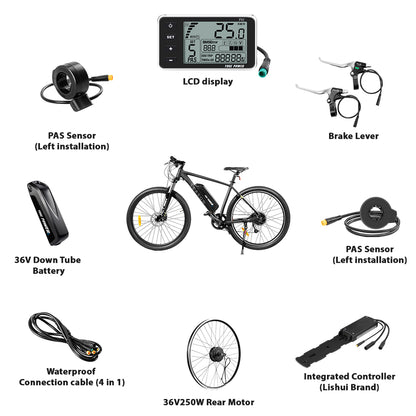

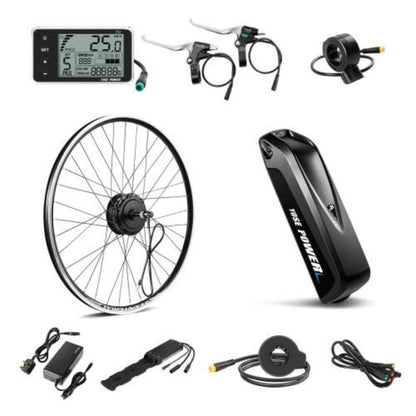

PACKING LIST
(EBK36250R28B+13HL1)
Item Description Quantity Remarks

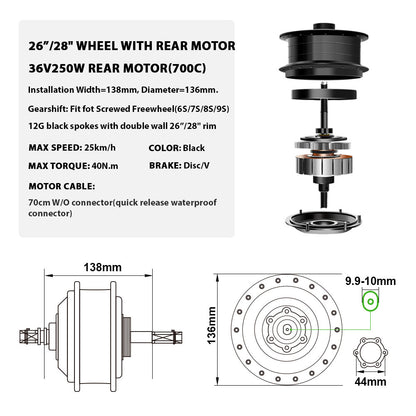

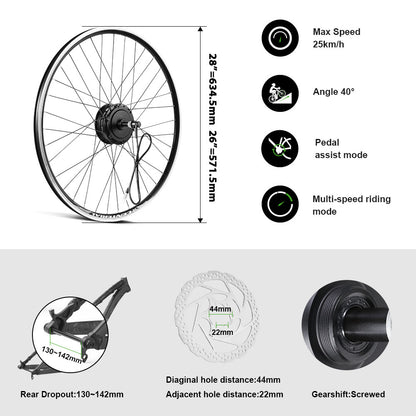

1 26"/28" Wheel with Rear Motor
1 36V250W Rear Motor,Installation Width=136mm, Diameter=138mm.

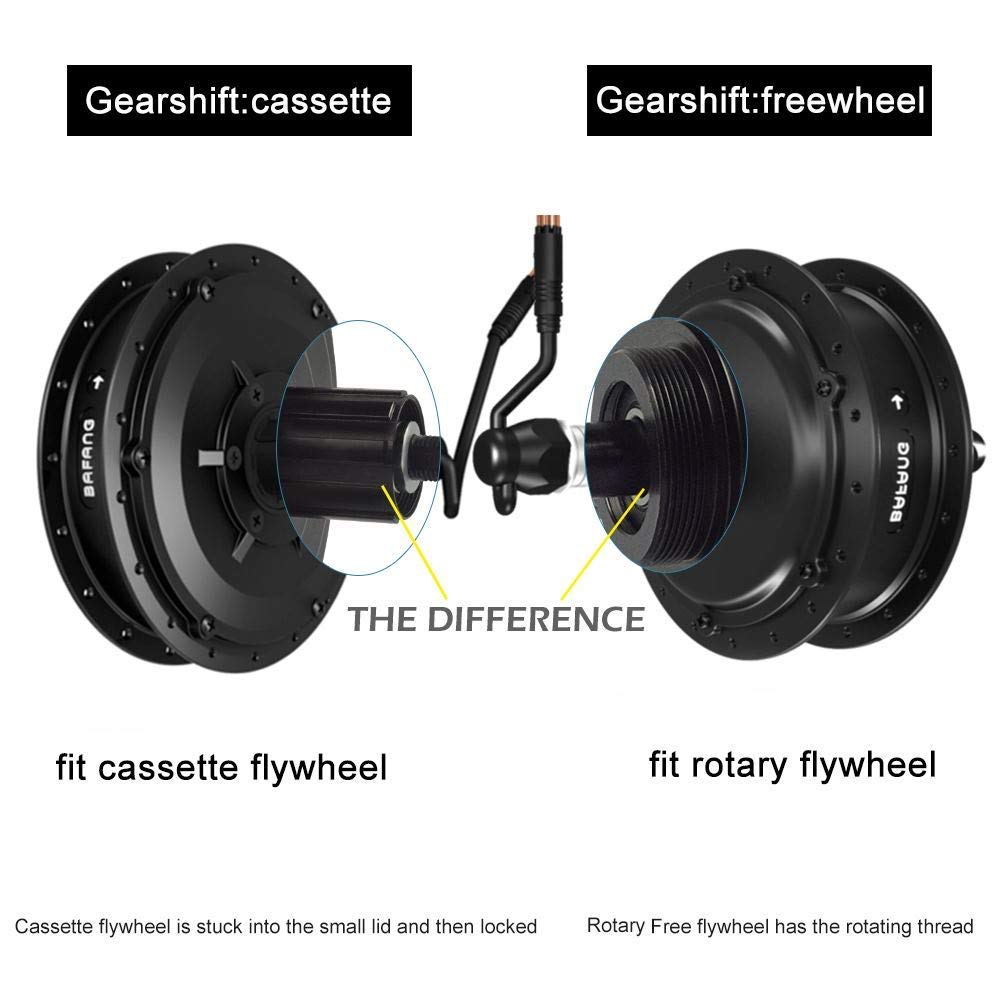

Gearshift: Fit for Screwed Freewheel(6S/7S/8S/9S)
13G spokes with double wall wheel
Max Speed: 30-32km/h
Max Torque:40N.m
Color:Black
Brake:Disc/V
Motor Cable:70cm W/O connector(quick release waterproof connector)

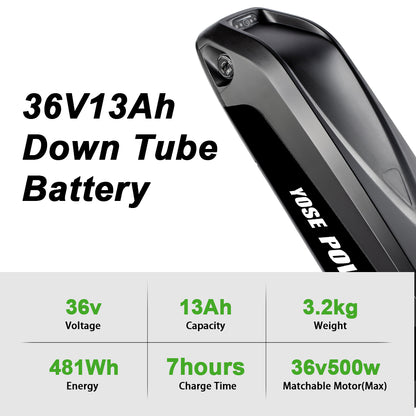

2 36V Down Tube Battery 1 36V13Ah, High power 18650 cells.
Down tube type, controller inside.
3 Integrated Controller
(Lishui Brand)
1 Low voltage protection: 30V, Rated current: 9A, Max. current: 18A.
Waterproof connecters: motor, PAS sensor, and 4 in 1 cable.

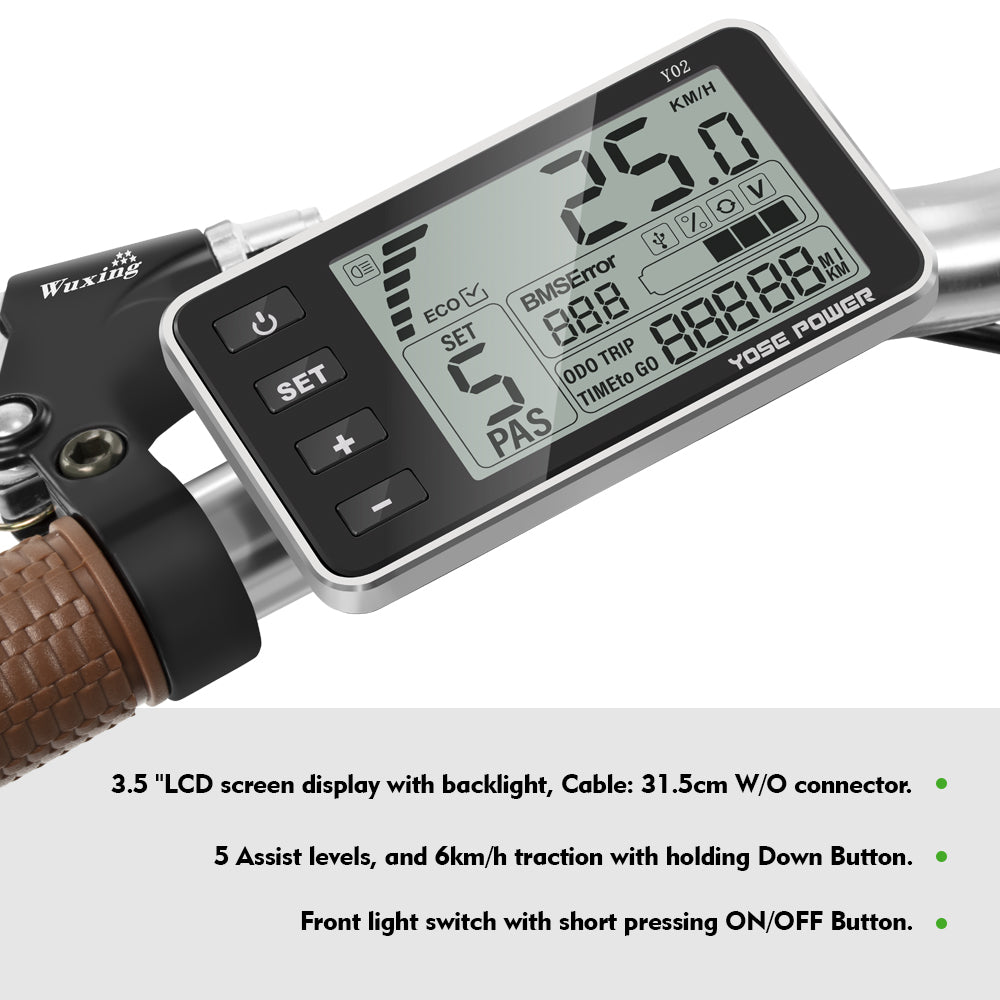

4 LCD display 1 3.5 "LCD screen display with backlight, Cable: 31.5cm W/O connector.
5 Assist levels, and 6km/h traction with holding Down Button.

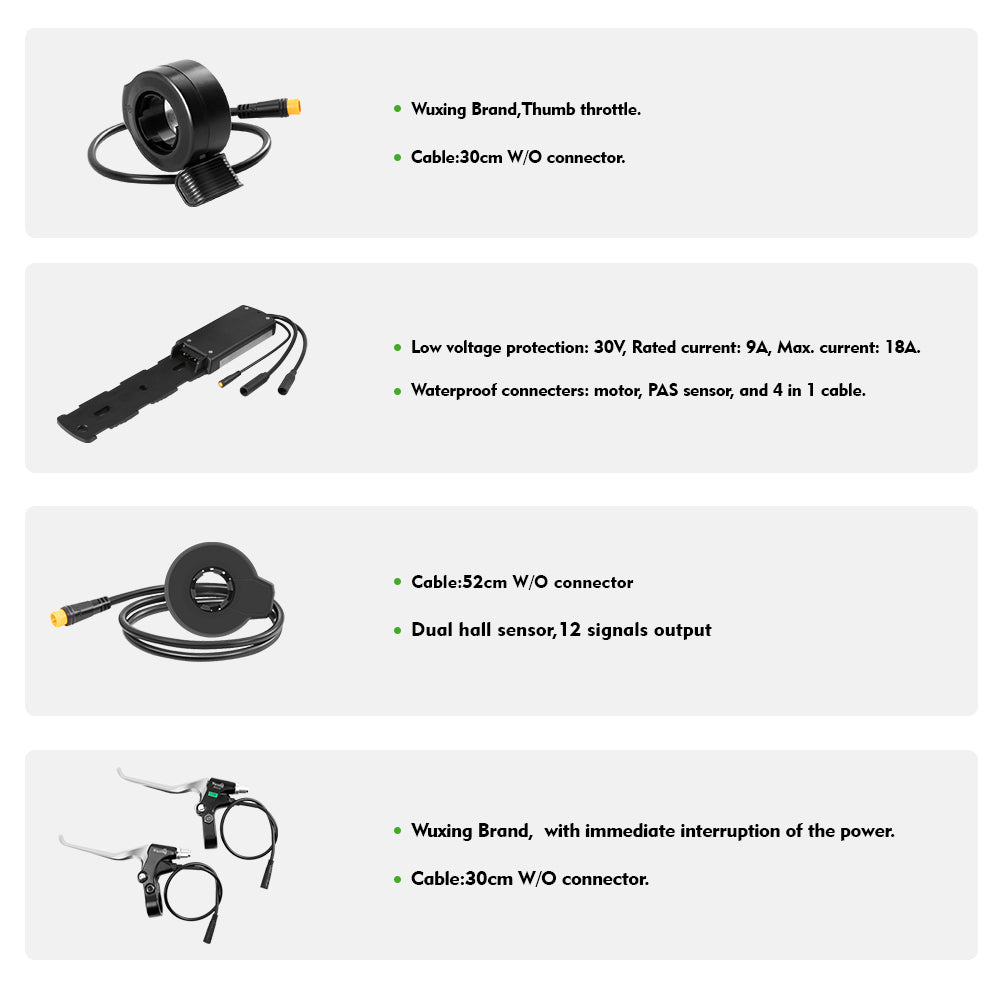

5 PAS Sensor(Left installation) 1 Cable:52cm W/O connector
Dual hall sensor,12 signals output
6 Brake Lever 2 Wuxing Brand,  with immediate interruption of the power.
Cable:30cm W/O connector.
7 Throttle 1 Wuxing Brand,Thumb throttle.
Cable:30cm W/O connector.
8 Waterproof Connection cable (4 in 1) 1 4 in 1 waterproof connectors(quick release)
Cable:150cm W/O connectors.
9 Controller bag 1 Color: Black                      FREE
10 Conversion tools 1                                        FREE



2. Warm tips
*Our package is equipped with an integrated sensor(
as top left corner).
  The original pedal sensor in kit isn't fit for Hollowtech II and Octalink. The brake levers are not fit for bike with hydraulic brake.

  Please carefully confirm the suitable type for your bike before buying. You can buy it separately.

*Please read the installation instructions carefully before you start, this instruction will help you to install the product effectively.
*36V battery(Li, lead-acid, NiMH battery etc.) is compatible with this motor.
*IMPORTANT NOTE:Please set the maximum driving speed of the e-bike according to the local traffic laws to prevent the safety risks caused by excessive speed!
*If you have any question, please contact us.

3. Important notice for recycling of used batteries& motor kits
*As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
*According to electronic consumer goods recycling regulations, batteries and motor kits  must not be disposed of with household ordinary waste.
*Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!

4. Copyright Statement
*All the contents including words, pictures and videos are original made by YOSE POWER.
*It is not allowed to plagiarize without permission or we keep the right to pursue legal responsibility.

Customer Reviews

Based on 3 reviews
100%
(3)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
T
Tim Gray
Great E bike conversion

This is the fourth Yose ebike conversion I have done, Fist was my own, then my wife's and now two friends. They have taken me about three hours to fit each one with a basic set of tools plus the special tools supplied with the kit. The most difficult part is usually fitting the battery mount. Most bikes don't have fixings that line up with the mounting holes. I have now purchased a Riv-nut tool so I can install Riv-nuts in the frame for the mounts. One ladies bike I did, I had to mount the Battery on a rear carrier as there was not enough room between the frame members. The rear axle is quite thick and sometimes needs the frame slots filing out a bit. another small problem is the wire from the rear hub makes it difficult to remove the rear wheel to repair a puncture. keep a 19mm spanner and some cable ties with you. Performance is great and so far all four have been reliable. I can get about 60 miles on a charge with economical use.

A
Anthony Dibben
Excellent Quality Conversion

Straight forward kit, fitted to a Carrera Crossfire Mens hybrid, had to make slight alterations to fit controller to the frame, other than that works a treat, very impressed and adds fun back to cycling.

M
Mr J Broughton
Highly recommended

Conversion kit (wheel + battery + tools/accessories) arrived very quickly and well packaged. All items appear to be good quality and I especially like the simple waterproof wiring and connectors (julet). Fitting the wheel to old Ridgeback hybrid bike was no problem. For the battery I had to buy an additional bracket to fix securely as the mount points on my bike were not in the right place for the battery pack. Once built it performs as expected… the PAS settings allow for different levels of power and I find 3 (range 1-5) to be perfect. Very happy with my purchase from Yose power.
