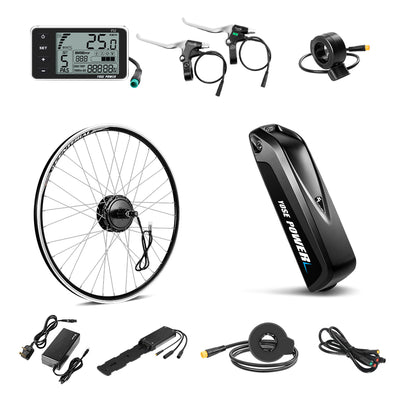

36V350W 26"/27.5"/28" Rear E-Bike Conversion Kit for Cassette with 36V13Ah HL1 Battery
Couldn't load pickup availability
Use this text to encourage communication or promote sharing on social networks.
1.Technical Data and Packing list
PACKING LIST (EBK36350R26KB+145HL1) |
|||
Item | Description | Quantity | Remarks |

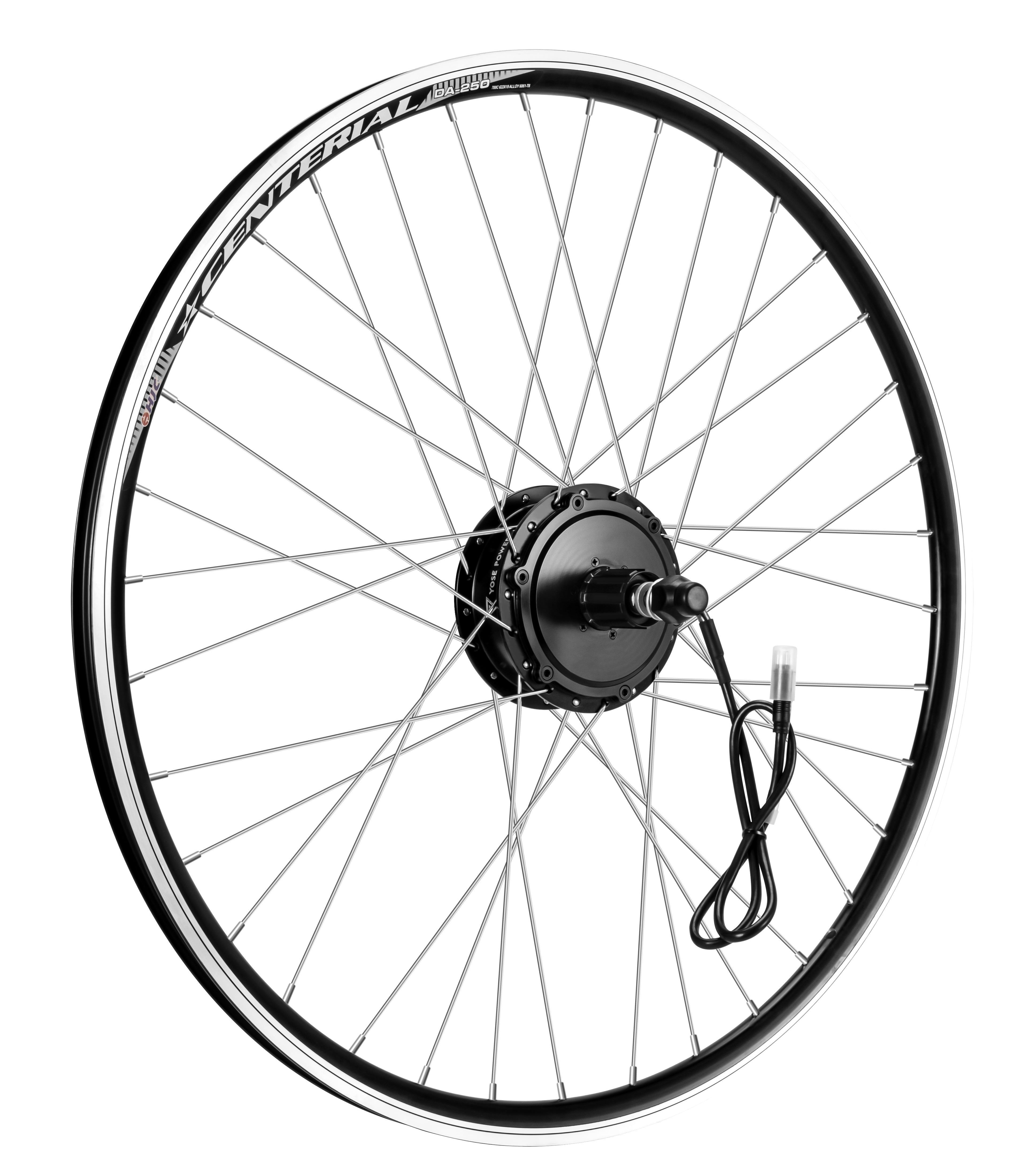

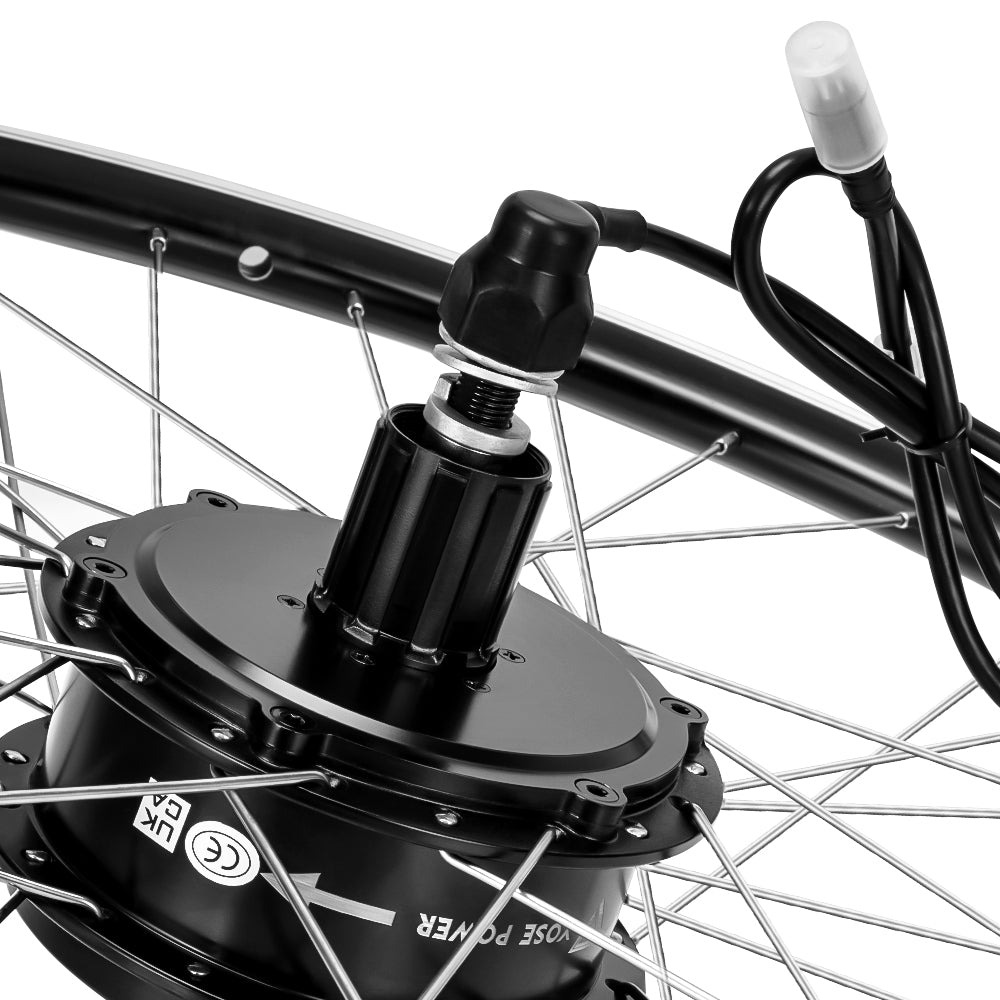

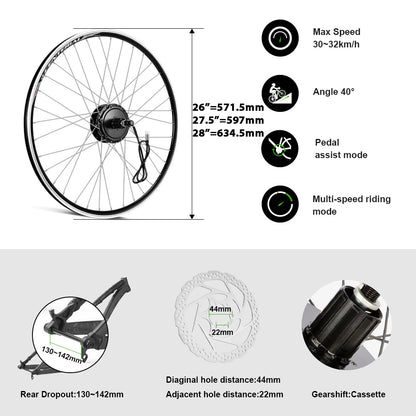

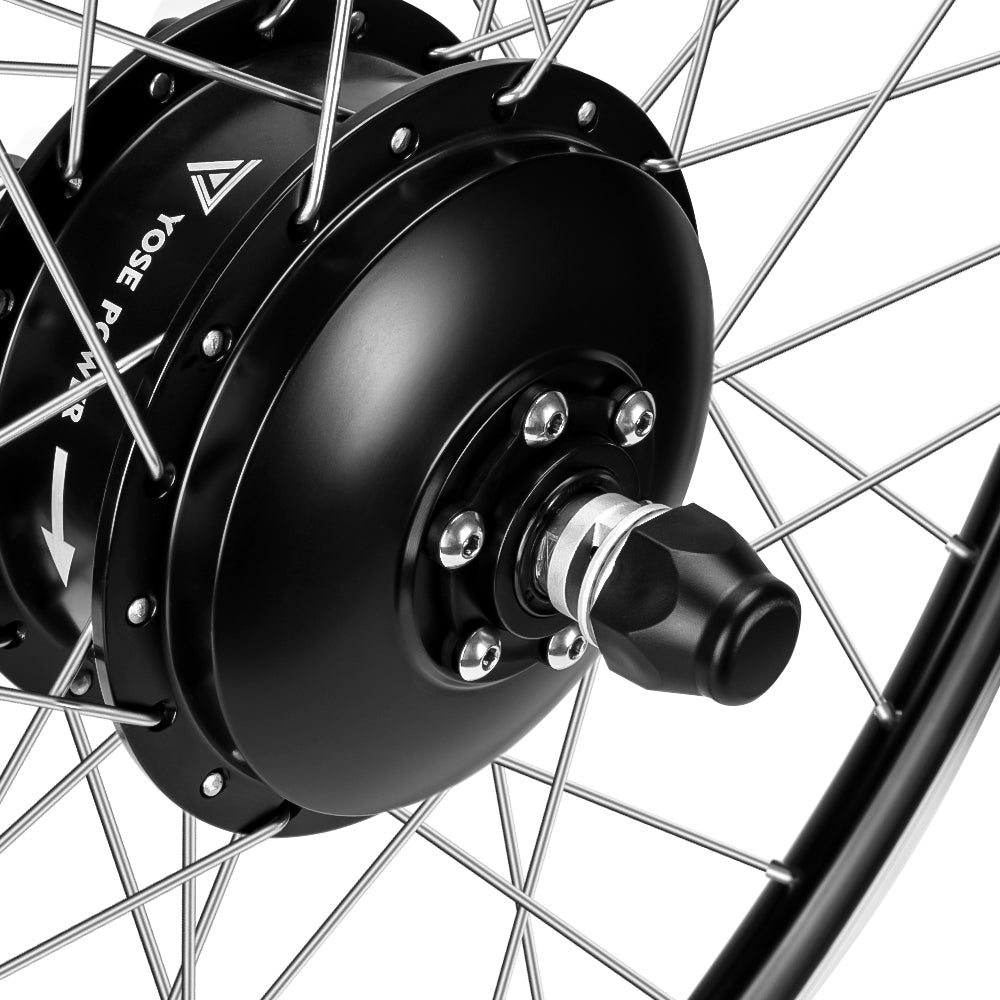

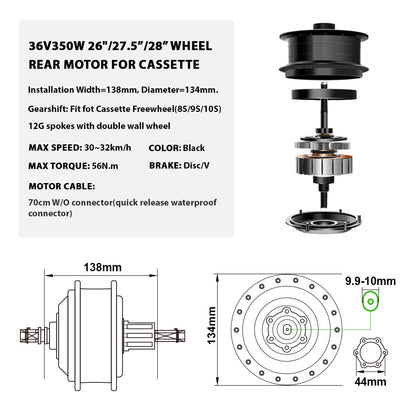

1 | 26"/27.5"/28" Wheel with Rear Motor | 1 | 36V350W Rear Motor, Installation Width=135mm, Diameter=138mm. Gearshift: Fit fot Cassette Freewheel(8S/9S/10S) 13G spokes with double wall wheel Max Speed: 30-32km/h Max Torque:56N.m Color:Black Brake:Disc/V Cable:70cm W/O connector(quick release waterproof connector) |

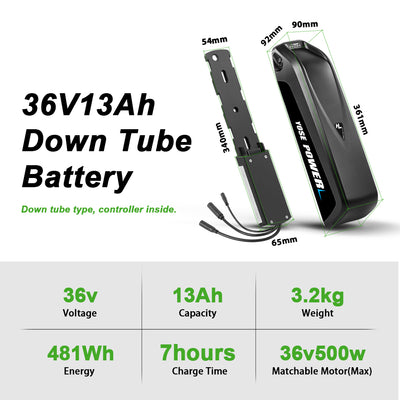

2 | 36V Down Tube Battery | 1 | 36V12.5Ah, High power 18650 cells. Down tube type, controller inside. |
3 | Integrated Controller (Lishui Brand) |
1 | Low voltage protection: 30V, Rated current: 9A, Max. current: 18A. Waterproof connecters: motor, PAS sensor, and 4 in 1 cable. |

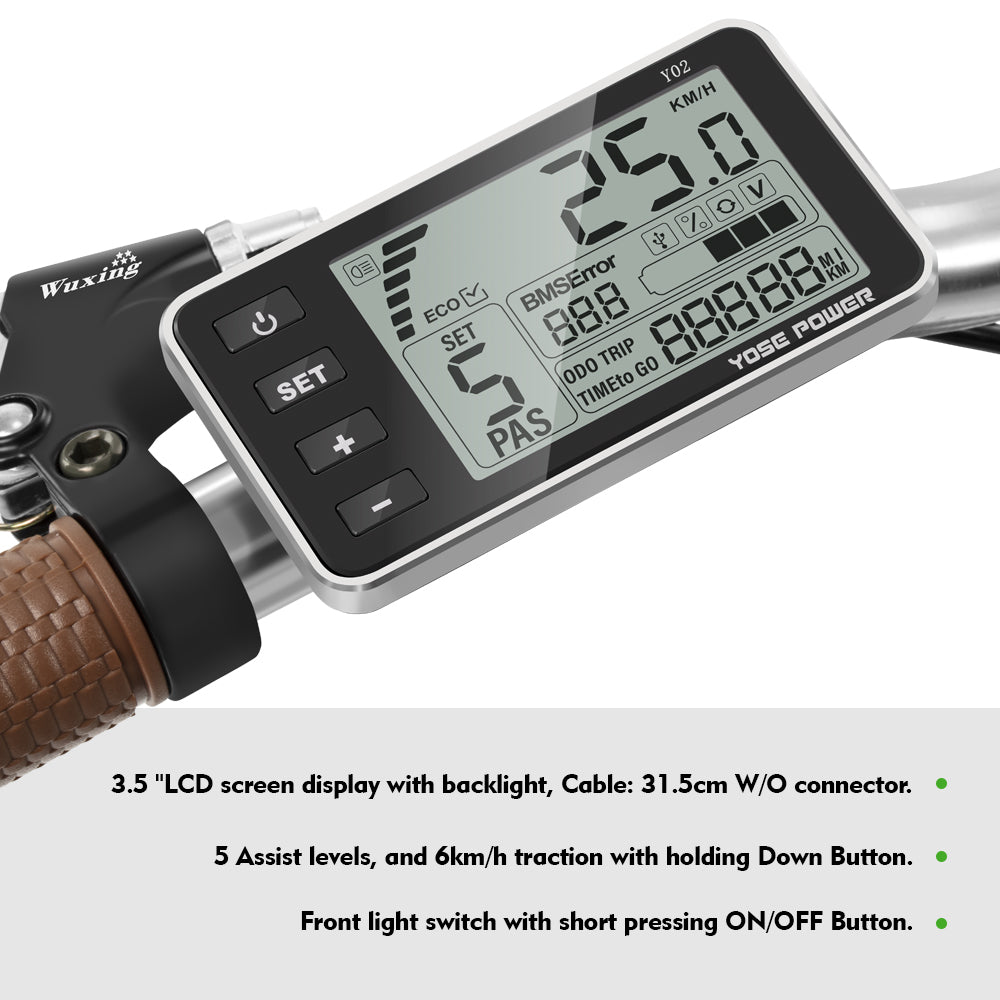

4 | LCD display | 1 | 3.5 "LCD screen display with backlight, Cable: 31.5cm W/O connector. 5 Assist levels, and 6km/h traction with holding Down Button. |
5 | PAS Sensor(Left installation) | 1 | Cable:52cm W/O connector Dual hall sensor,12 signals output |
6 | Brake Lever | 2 | Wuxing Brand, with immediate interruption of the power. Cable:30cm W/O connector. |
7 | Throttle | 1 | Wuxing Brand,Thumb throttle. Cable:30cm W/O connector. |
8 | Waterproof Connection cable (4 in 1) | 1 | 4 in 1 waterproof connectors(quick release) Cable:150cm W/O connectors. |
9 | Controller bag | 1 | Color: Black FREE |
10 | Conversion tools | 1 | FREE |
2. Warm tips
*Our package is equipped with an integrated sensor(as top left corner).
The original pedal sensor in kit isn't fit for Hollowtech II and Octalink. The brake levers are not fit for bike with hydraulic brake.
Please carefully confirm the suitable type for your bike before buying. You can buy it separately.
*Please read the installation instructions carefully before you start, this instruction will help you to install the product effectively.
*36V battery(Li, lead-acid, NiMH battery etc.) is compatible with this motor.
*IMPORTANT NOTE:Please set the maximum driving speed of the e-bike according to the local traffic laws to prevent the safety risks caused by excessive speed!
*If you have any question, please contact us.
3. Important notice for recycling of used batteries& motor kits
*As a professional seller, we strictly abide by local laws and regulations to ensure product's quality, transportation and storage safety, environmental protection.
*According to electronic consumer goods recycling regulations, batteries and motor kits must not be disposed of with household ordinary waste.
*Consumers are obliged to dispose of the used electronic goods to the professional recycling agency in local for proper disposal. They must not be arbitrarily throw into the trash. Please protect the environment!
